9-Pin Electrical Caps and Connectors Built for Heavy-Duty OEM Applications
Cablecraft offers rugged, sealed 9-pin connector solutions for light-duty and heavy-duty automotive, truck, off-road, construction, agriculture, marine, recreational, and industrial equipment applications. When your application requires a durable electrical connection in a harsh operating environment, Cablecraft 9-pin connectors provide a practical, cost-effective solution without compromising the reliability OEM customers expect.
Engineering Resources & Design Guides
Our engineering team has applied their years of industry experience to develop resource documentation for each of our product lines.
Cable Assembly Network
Our Worldwide Cable Assembler Network can help you with your mechanical motion control solutions.
Online Catalog
Don’t need a custom design? Download our digital catalog to see all of our available cable and linkage assemblies.
Rugged 9-Pin Connector Solutions for Demanding Environments
Cablecraft’s 9-pin electrical caps and connectors are engineered for applications where a heavy-duty industrial connection is required. These connectors are designed to help protect against moisture, sand, dust, lubricating oils, fuel, road salt, hydraulic fluid, grease, mud, and other contaminants commonly found in demanding vehicle and equipment environments.
- Sealed for secure, weather-resistant electrical connections
- Designed for repeated connect and disconnect cycles
- Built for long service life in harsh operating environments

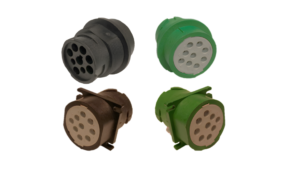

- Available in black and green configurations
- Suitable for OEM sourcing, replacement, and application-specific builds
Industries
Cablecraft 9-pin connectors are well suited for OEM applications that require dependable electrical connectivity across transportation, off-road, and industrial equipment platforms.
Heavy Truck
Electrical connection solutions for commercial vehicle platforms, vocational trucks, buses, and related heavy-duty systems.
Off-Road & Heavy Equipment
Connector options for construction, agriculture, utility, and equipment platforms exposed to vibration, contaminants, moisture, and outdoor use.
Construction/ Agriculture
Electrical cap and connector solutions for equipment operating in mud, dust, moisture, chemicals, and abrasive environments.
9-Pin Connector Specifications
| Product Type | 9-position electrical connector / receptacle |
|---|---|
| Common Applications | Heavy truck, bus, off-road equipment, construction, agriculture, marine, recreational vehicles, plant equipment, robotics, and industrial applications |
| Connector Style | In-line or flanged configurations available |
| Cavity Range | Arrangements available from 3 to 9 cavities |
| Contact Compatibility | Accepts size 12 or 16 contacts, or a combination of size 16 and size 4 contacts |
| Contact Gender | Without pin contacts |
| Current Rating | 13 A |
| Voltage Rating | 250 V |
| Operating Temperature | -55°C to +125°C |
| Housing Material | Polyamide |
| Ingress Protection | IP68 / IP6K9K |
| Termination Style | Crimp |
| Wire Gauge Range | 14 AWG to 20 AWG |
| Available Colors | Black and green options available |
| Mounting Styles | Panel mount, mounting flange, or mounting detents depending on part number |
Specifications vary by part number. Confirm fit, mounting style, color, and cross-reference requirements with the Cablecraft team before ordering.
Connector FAQ's
9-pin electrical connectors are commonly used in vehicle, equipment, marine, agricultural, industrial, and robotic applications where a rugged multi-pin electrical connection is required.
Yes. Cablecraft offers 9-pin connector options that can be compared against select DEUTSCH HD10-style part numbers. Fitment and application requirements should be confirmed before ordering.
Cablecraft 9-pin connector solutions are designed to support secure, weather-resistant connections for demanding environments.
Common applications include heavy trucks, buses, off-road vehicles, construction equipment, farm machinery, marine and recreational vehicles, plant equipment, and robotics.
Yes. Cablecraft can help review your application, current part number, cross-reference requirements, and operating environment to identify the right connector option.
Pricing should be handled through the quote process so Cablecraft can confirm the correct product, fitment, volume, and customer requirements.
DEUTSCH HD10 Cross-Reference Options
Cablecraft offers 9-pin connector options that can be used as cost-effective cross-reference solutions for select DEUTSCH HD10-style connector applications. Use the guide below as a starting point, then confirm fitment, color, mounting style, and application requirements with the Cablecraft team before ordering.
| Cablecraft Part Number | Comparable DEUTSCH Part Number | Color | Mounting Style | Connector Type | Notes |
|---|---|---|---|---|---|
| CMA12673H | HD10-9-1939PE-B022 | Black | Panel Mount | 9-position receptacle connector | Without pin contacts; designed for sealed, heavy-duty electrical connection applications. |
| CMA12567H | HD10-9-1939PE-BP03 | Green | Panel Mount | 9-position receptacle connector | Without pin contacts; suitable for heavy-duty OEM and equipment applications. |
| CMA12570H | HD10-9-1939P | Black | Mounting Flange | 9-position receptacle connector | Without pin contacts; built for rugged electrical connection requirements. |
| CMA12569H | HD10-9-1939PE-P080 | Green | Mounting Flange | 9-position receptacle connector | Without pin contacts; supports sealed connection needs in harsh operating environments. |
| CMA12572H | N/A | Black | Mounting Flange | 9-position receptacle connector | Cablecraft 9-pin connector option. Confirm application fitment with the Cablecraft team. |
| CMA12564H | N/A | Green | Mounting Flange | 9-position receptacle connector | Cablecraft 9-pin connector option. Confirm application fitment with the Cablecraft team. |
| CMA12571H | N/A | Black | Mounting Detents | 9-position receptacle connector | Cablecraft 9-pin connector option. Confirm application fitment with the Cablecraft team. |
Specifications and fitment requirements vary by part number and application. Confirm color, mounting style, connector requirements, and cross-reference details before ordering.
DEUTSCH and related part numbers are referenced for comparison and identification purposes only. Cablecraft is not affiliated with or endorsed by TE Connectivity or DEUTSCH.
