Description

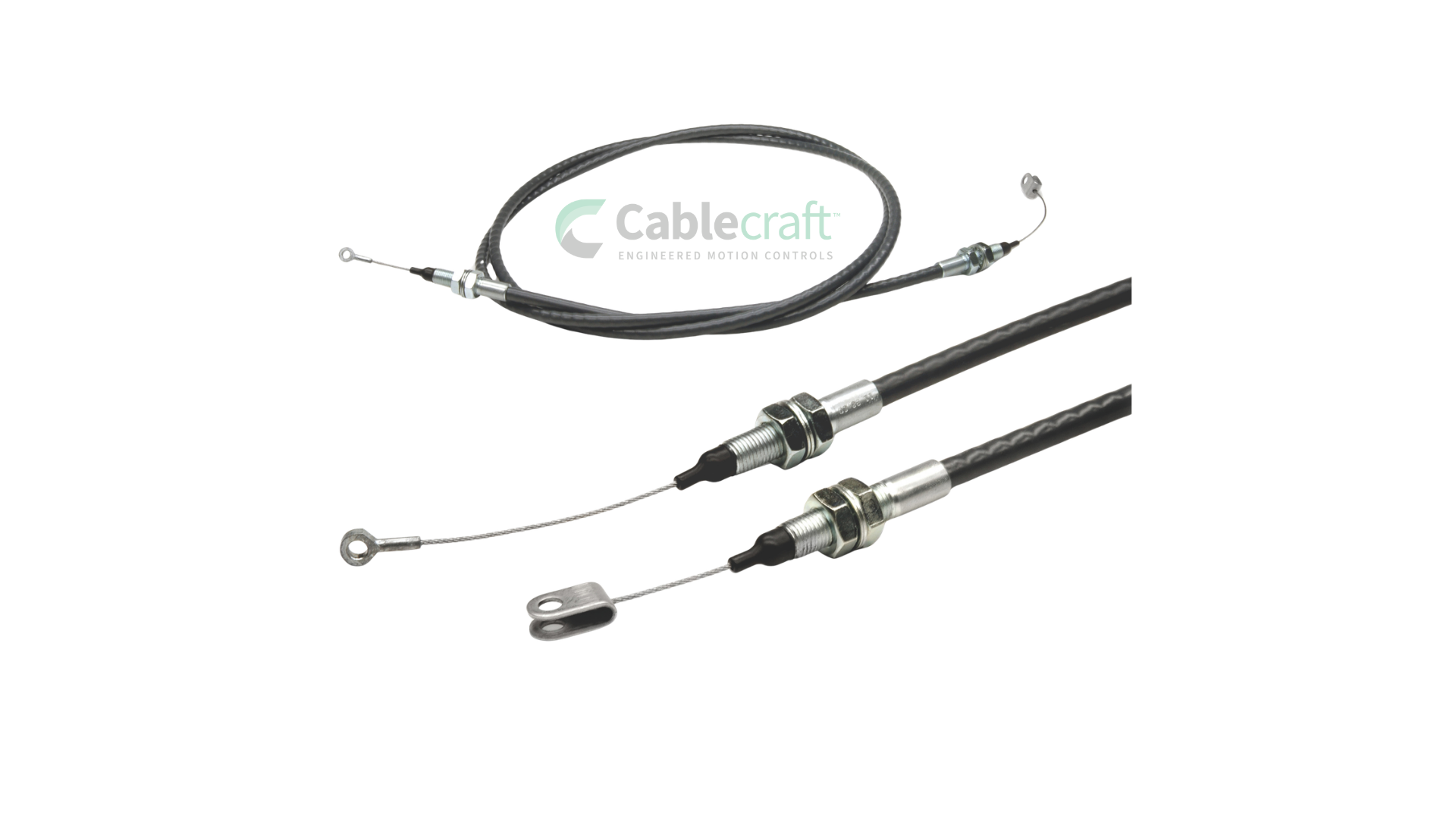

The Cablecraft Pull-Only Tension Control Cable Assembly is a flexible mechanical control designed to transmit force in tension. It provides a practical alternative to rigid rods, bellcranks, and other fixed mechanical linkages when motion must be transferred around structures, panels, or other equipment obstacles.
This product family is designed as a durable, long-lasting, and economical control solution. The assembly is sealed and lubricated for life, helping reduce routine maintenance requirements. Cablecraft can configure the finished cable with threaded or grooved conduit ends and a broad selection of end fittings to match the equipment’s mounting and connection requirements.
Request a quote for Control Cables
Custom Configured for the Application
Pull-only cable requirements vary based on equipment geometry, mounting locations, available routing, operating travel, load, and connection style. Cablecraft can configure the cable during manufacture to fit the application.
Customization options may include:
- Conduit length
- Overall cable length
- Required operating travel
- Threaded conduit ends
- Grooved conduit ends
- Threaded-to-threaded mounting
- Threaded-to-grooved mounting
- Grooved-to-grooved mounting
- 1/4-28 end rods
- 10-32 end rods
- Rod ends
- Clevises
- Threaded end fittings
- Optional brass conduit caps
- Optional stainless steel end fittings
- Different fittings on opposite ends
- Special connection arrangements
- Replacement dimensions based on a drawing or sample
The finished cable is configured during manufacture. It should not be shortened, altered, or fitted with different terminations in the field.
Common Applications
- Throttle controls
- Blade engagement systems
- Choke controls
- Latch release systems
- Window releases
- Seat releases
- Engine stop controls
- Mechanical disconnects
- Remote release mechanisms
- Lawn and garden equipment
- Agricultural equipment
- Construction equipment
- Industrial machinery
- Recreational equipment
- Custom OEM mechanical systems

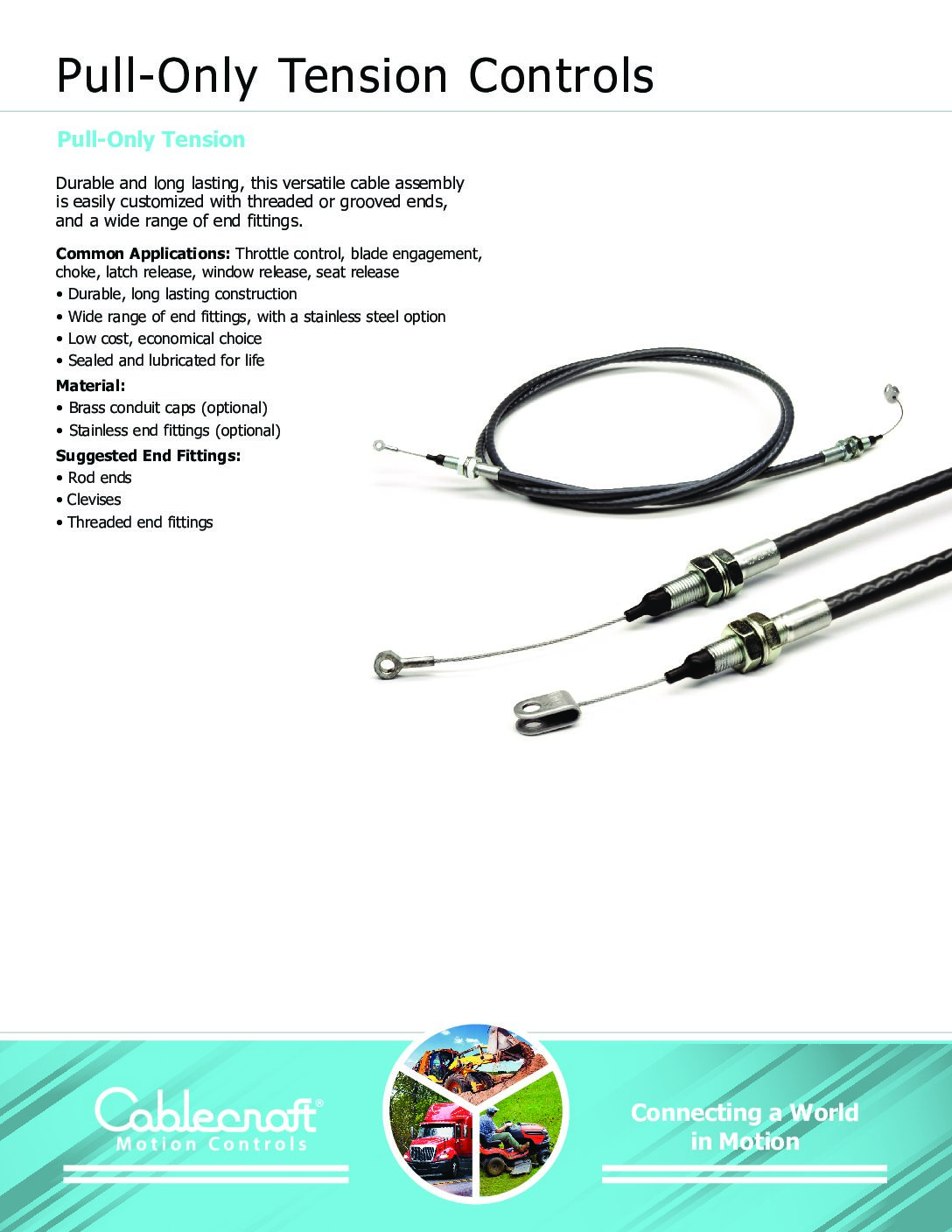

The legacy product literature specifically identifies throttle control, blade engagement, choke, latch release, window release, and seat release as common applications.
Key Features and Benefits
- Designed for tension-only mechanical control
- Durable, long-lasting cable construction
- Economical alternative to more complex actuation systems
- Sealed and lubricated for life
- Custom conduit and overall lengths
- Threaded and grooved mounting options
- Wide selection of end fittings
- Optional stainless steel end fittings
- Optional brass conduit caps
- 1/4-28 and 10-32 end rod options
- Multiple mounting combinations
- Suitable for OEM and replacement applications
- Custom-tailored assemblies available
Technical Information
| Specification | Product Details |
|---|---|
| Control Type | Pull-only mechanical control cable |
| Motion Direction | Tension / pull only |
| Primary Function | Remote mechanical actuation |
| Lubrication | Sealed and lubricated for life |
| Conduit Ends | Threaded, grooved, or mixed |
| End Rod Threads | 1/4-28 and 10-32 listed legacy options |
| End Fittings | Rod ends, clevises, and threaded fittings |
| Brass Conduit Caps | Optional |
| Stainless Steel End Fittings | Optional |
| Conduit Length | Custom |
| Overall Length | Custom |
| Travel | Application-specific |
| Special Configurations | Available |
| Purchase Method | Request a quote |
Product Family and Mounting Configurations
The legacy product sheet identifies several mounting and end-rod combinations. Current availability should be verified before displaying an individual part number as active.
A156 Series
| Mounting Arrangement | 1/4-28 End Rods | 10-32 End Rods |
|---|---|---|
| Grooved to grooved | A156-637-L | A156-657-L |
| Threaded to grooved | A156-638-L | A156-658-L |
| Threaded to threaded | A156-679-L | A156-680-L |
CA305 and CA306 Series
| Mounting Arrangement | 1/4-28 End Rods | 10-32 End Rods |
|---|---|---|
| Threaded to threaded | CA305-TT-A-L | CA306-TT-A-L |
| Threaded to grooved | CA305-TG-A-L | CA306-TG-A-L |
| Grooved to grooved | CA305-GG-A-L | CA306-GG-A-L |
FAQ’s
What is a pull-only tension control cable?
A pull-only tension control cable is a flexible mechanical assembly that transfers force in tension between two devices. It is used when the output mechanism must be pulled rather than pushed.
What applications use pull-only tension cables?
Common applications include throttle controls, blade engagement systems, choke controls, latch releases, window releases, seat releases, and other remote mechanical actuation systems.
Can Cablecraft manufacture a custom cable length?
Yes. The conduit length and overall cable length can be configured to fit the application.
Can the mounting ends be customized?
Yes. Available legacy configurations include threaded-to-threaded, threaded-to-grooved, and grooved-to-grooved conduit mounting arrangements.
What end rod threads are available?
The legacy product literature lists 1/4-28 and 10-32 end rods. Other connection requirements should be reviewed with Cablecraft.
What end fittings can be used?
Suggested fittings include rod ends, clevises, and threaded end fittings. Optional stainless steel end fittings are also identified.
Are stainless steel components available?
The product literature lists stainless steel end fittings as an option. Current material and fitting availability should be confirmed during quoting.
Are brass conduit caps available?
Yes. Brass conduit caps are identified as an optional material configuration in the legacy product literature.
Does the cable require routine lubrication?
The product is described as sealed and lubricated for life. Field lubrication is generally not required unless otherwise specified for a particular construction.
Can Cablecraft match an existing cable?
Cablecraft can evaluate an existing part number, drawing, dimensional information, photos, or a sample cable to determine an appropriate replacement configuration. Compatibility must be confirmed before ordering.
What information is required for a quote?
Provide the application, operating load, conduit length, overall length, travel, mounting style, thread size, fittings, routing, environmental conditions, quantity, and any available drawings or photos.
