Description
The Cablecraft Pull-Only T-Flex Control Cable Assembly provides a flexible and economical method of transmitting tensile force between two mechanical devices.
The inner cable is manufactured from multi-strand, high-tensile steel and may be tinned or galvanized for corrosion resistance. The outer conduit uses one or two high-tensile steel wires wound spirally to provide compression strength and support reliable cable operation.
T-Flex is offered in a broad range of size combinations, with product-family load capabilities ranging from light-duty applications up to 2,200 lbs., depending on the selected construction. Protective coverings can include polypropylene or PVC, and some configurations may be supplied without an outer covering. Selected sizes can also incorporate a high-density polypropylene liner for smoother, lower-friction operation.
Request a quote for Control Cables
Key Features and Benefits
- Designed for pull-only mechanical actuation
- Cost-effective control cable family
- Multi-strand, high-tensile steel innermember
- Tinned or galvanized corrosion-resistant options
- Flexible spiral-wound steel conduit
- One-wire or two-wire conduit construction
- Product-family load range up to 2,200 lbs., depending on configuration
- Polypropylene, PVC, or uncovered conduit options
- Optional low-friction liner on selected sizes
- Lined and unlined conduit options
- UNF and metric thread availability
- Plated steel construction with optional stainless steel
- Armored strand and solid wire options
- Broad range of mounting fittings and control knobs
- Custom lengths, travel, and end fittings
- Suitable for OEM and replacement applications
Common Applications
- Clutch control cables
- Throttle control cables
- Hand brake cables
- Parking brake controls
- Engine stop cables
- Choke controls
- Mechanical release systems
- Industrial equipment controls
- Agricultural equipment
- Construction equipment
- Lawn and garden equipment
- Commercial vehicles
- Specialty vehicles
- Custom OEM mechanical actuation

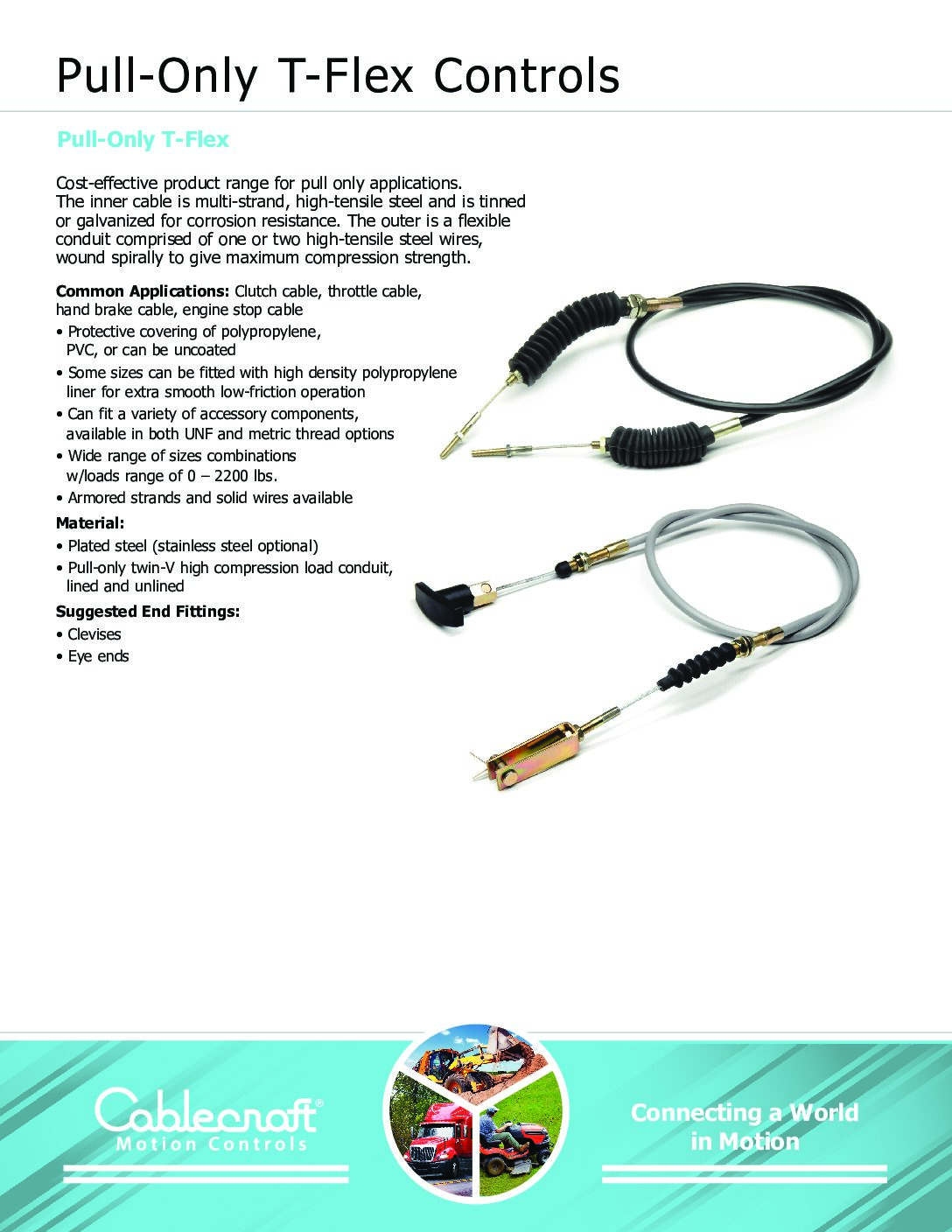

The legacy product sheet specifically lists clutch cables, throttle cables, hand brake cables, and engine stop cables as common applications.
Materials and Construction
| Component | Available Configuration |
|---|---|
| Control Type | Pull-only mechanical control |
| Innermember | Multi-strand, high-tensile steel |
| Innermember Finish | Tinned or galvanized |
| Conduit Reinforcement | One or two spiral-wound high-tensile steel wires |
| Conduit Type | Pull-only twin-V high-compression conduit |
| Conduit Liner | Lined or unlined |
| Optional Low-Friction Liner | High-density polypropylene on selected sizes |
| Outer Cover | Polypropylene, PVC, or uncoated |
| Standard Material | Plated steel |
| Optional Material | Stainless steel |
| Specialized Innermember | Armored strand or solid wire |
| Thread Options | UNF and metric |
| Length | Custom configured |
| End Fittings | Application-specific |
Technical Specifications
| Specification | Product Details |
|---|---|
| Product Type | Pull-only T-Flex control cable |
| Motion Direction | Tension / pull only |
| Innermember Material | High-tensile steel |
| Corrosion Protection | Tinned or galvanized |
| Conduit Construction | Spiral-wound high-tensile steel |
| Conduit Types | One-wire or two-wire |
| Conduit Cover | Polypropylene, PVC, or uncoated |
| Conduit Liner | Optional on selected sizes |
| Material | Plated steel, stainless steel optional |
| Load Range | Configuration-dependent, up to 2,200 lbs. across the product family |
| Thread Standards | UNF and metric |
| End Fittings | Clevises, eye ends, sleeves, bushes, knobs, and custom options |
| Cable Length | Custom |
| Travel | Custom |
| Purchase Method | Request a quote |
FAQ’s
What is a Pull-Only T-Flex Control Cable?
A T-Flex cable is a flexible mechanical control designed to transfer force in tension. It uses a high-tensile steel innermember inside a spiral-wound conduit and is commonly used for clutch, throttle, hand brake, and engine stop controls.
What is the maximum load of a T-Flex cable?
The legacy literature states that the overall T-Flex family includes configurations ranging up to 2,200 lbs. The actual load capability depends on the selected cable size, conduit, innermember, fittings, routing, and safety factor.
Can Cablecraft make a custom T-Flex cable?
Yes. Cablecraft can configure the cable length, conduit length, travel, cable size, covering, liner, threads, mounting components, knobs, clevises, and eye ends.
Are metric threads available?
Yes. The T-Flex product family can accommodate both UNF and metric thread options.
What coverings are available?
Legacy options include polypropylene, PVC, and uncoated conduit. Availability should be confirmed during quoting.
Can T-Flex cables include a low-friction liner?
Some sizes can be fitted with a high-density polypropylene liner to support smoother, lower-friction operation.
Is stainless steel available?
The product literature lists stainless steel as an optional material in addition to plated steel.
What end fittings can be used?
Suggested fittings include clevises and eye ends. The product family also supports various headed bushes, reverse bushes, dashboard mounts, plain or threaded sleeves, capped ends, and control knobs.
What applications use T-Flex cables?
Common applications include clutch controls, throttle controls, hand brakes, parking brakes, engine stop systems, choke controls, and other pull-only mechanical actuation systems.
Can T-Flex replace an existing cable?
A T-Flex assembly may be configured as a replacement candidate when the dimensions, load, travel, routing, fittings, and environment are confirmed. Submit a part number, drawing, sample, or detailed measurements for review.
What information is required for a quote?
Provide the application, load, conduit length, overall length, travel, routing, mounting style, thread sizes, fittings, environmental conditions, quantity, and any available drawings or photos.
