Description

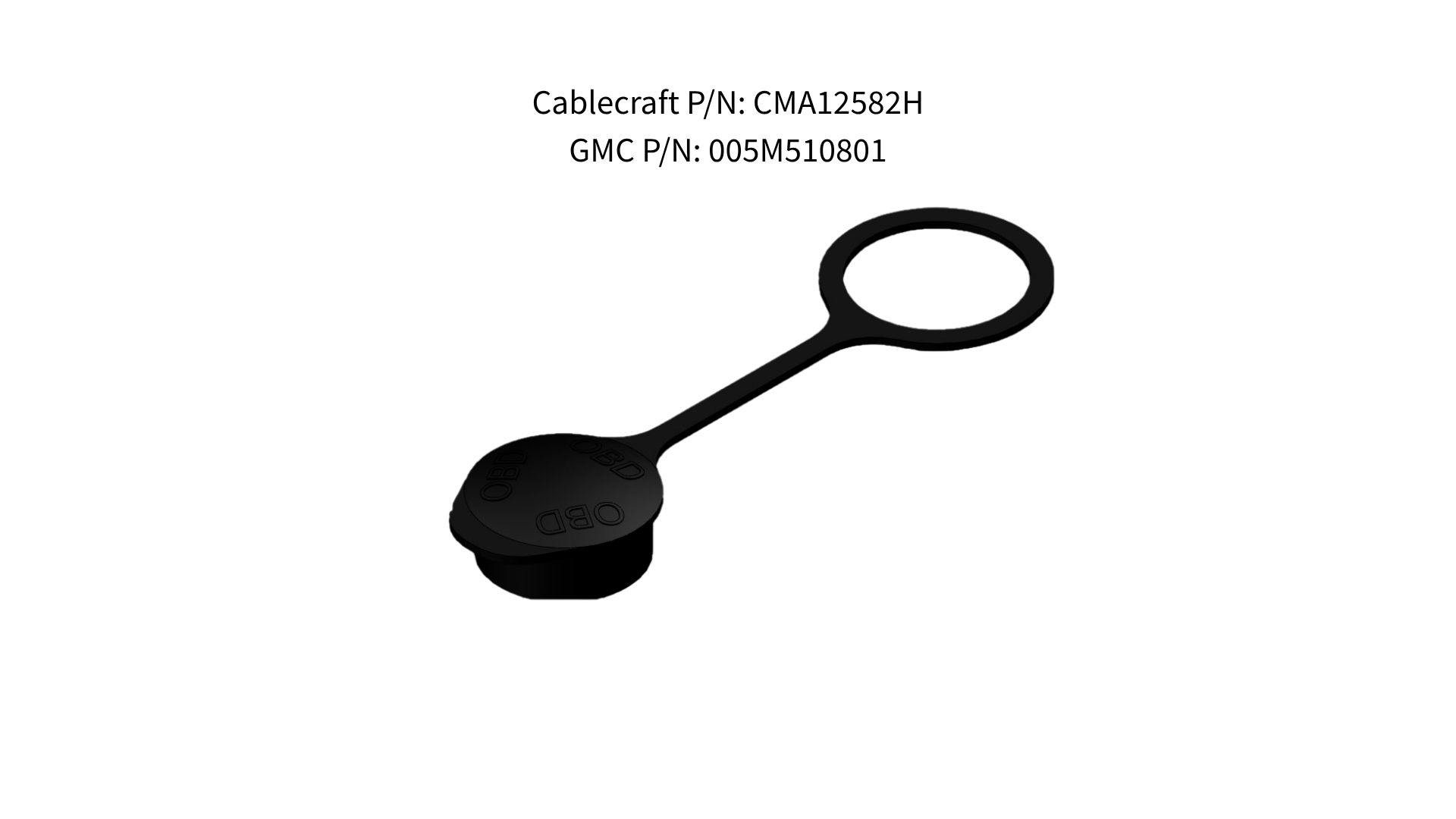

The Cablecraft CMA12582H Black 9-Pin Push-On Protective Cap is designed for OEM and industrial applications where exposed 9-pin electrical connector interfaces require dependable protection during assembly, shipment, storage, operation, or service.
This push-on cap helps cover compatible 9-pin connector openings to reduce exposure to debris, incidental contact, and environmental contamination. Its molded retention loop allows the cap to remain attached near the connector when removed, helping reduce lost caps and supporting easier service access in production or field environments.
The CMA12582H is molded in black material and includes raised OBD lettering for quick visual identification. The drawing specifies TPE material, black Santoprene 111-73, or Sarlink X-5775B4, with a 73 to 75 durometer note. Its push-on design supports fast installation without threaded engagement, tools, or additional fastening hardware.
Cablecraft supports quote-based sourcing for protective electrical caps, connector accessories, motion control assemblies, and OEM component supply programs.
Request A Quote
Key Benefits
- Protects 9-pin connector interfaces
Helps shield exposed electrical connector openings from dust, debris, contamination, and handling damage. - Raised OBD identification
Molded OBD lettering supports quick part recognition in assembly, maintenance, and service environments. - Push-on installation
Designed for fast installation without threads, tools, or separate fastening hardware. - Integrated retention loop
Built-in loop helps keep the cap near the connector when removed, reducing the chance of misplacement. - Durable molded construction
Specified in black TPE, Santoprene 111-73, or Sarlink X-5775B4 material depending on approved application requirements. - OEM application support
Well suited for quote-based sourcing, replacement part programs, and production supply requirements.
Product Specifications
| Specification | Detail |
|---|---|
| Cablecraft Part Number | CMA12582H |
| OEM Cross-Reference P/N | 005M510801 |
| Product Type | 9-Pin Push-On Protective Cap |
| Connector Style | 9-pin electrical connector protective cap |
| Installation Type | Push-on |
| Color | Black |
| Identification Marking | Raised OBD lettering |
| Material | TPE, black, or Santoprene 111-73 / Sarlink X-5775B4 per drawing note |
| Durometer | 73 to 75 Shore |
| Retention Feature | Integrated molded retention loop |
| Cap Outer Diameter | Approx. 1.45 in. |
| Cap Inner Diameter | Approx. 1.25 in. |
| Cap Height | Approx. 0.72 in. |
| Tether / Overall Strap Length | Approx. 4.250 in. ± 0.125 in. |
| Retention Loop Outer Diameter | Approx. 1.51 in. ± 0.040 in. |
| Pricing | Request a quote |
| Shipping | Quoted based on order requirements |
Request A Quote
FAQ
What is the Cablecraft CMA12582H used for?
The Cablecraft CMA12582H is a black push-on protective cap used to cover and protect compatible 9-pin electrical connector interfaces when the connector is not in use.
Does the CMA12582H cap include OBD markings?
Yes. The cap includes raised OBD lettering for visual identification.
Does this cap include a retention loop?
Yes. The CMA12582H includes an integrated molded retention loop to help keep the cap near the connector when removed.
What material is the CMA12582H cap made from?
The drawing specifies black TPE, Santoprene 111-73, or Sarlink X-5775B4, with a 73 to 75 durometer note.
Is this product priced online?
No. This product should be set up as quote-based. Customers can request pricing, availability, and order details through Cablecraft.
Can Cablecraft support OEM production requirements?
Yes. Cablecraft supports OEM customers with application review, sourcing support, and production supply for electrical caps, connectors, and engineered component solutions.
